Foundation and Structural Work – GC Estimations

Foundation Plan Quantity Takeoff Using Bluebeam Revu

This task involved using Bluebeam Revu to perform a structural quantity takeoff from the foundation plan of a building. The process focused on identifying and measuring various concrete elements, including slabs, footings, and thickened slab edges, directly from the construction drawings.

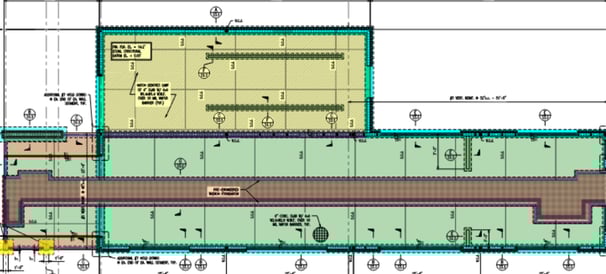

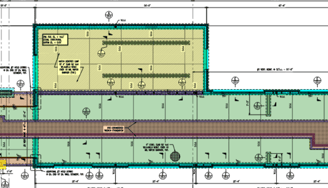

Drawing Layout and Markups Overview:

The image shows a color-coded construction floor plan where different types of structural elements have been identified and marked using Bluebeam’s markup tools:

• Highlighted zones represent areas like slab-on-grade, thickened slabs, and footings.

• Specific construction notes, room areas, and materials like PRE-FINISHED WOOD FLOORING are also labeled for clarity.

• Each color represents a different item type, making the drawing visually organized and easy to reference during estimation.

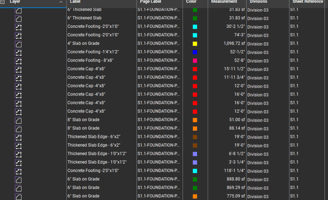

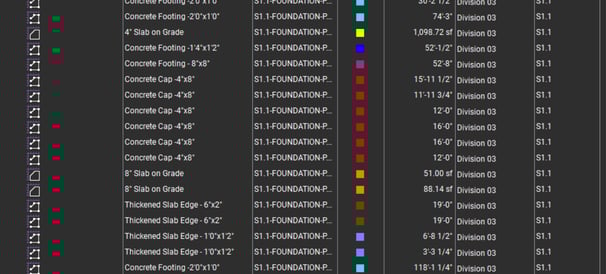

Markups List – Quantity Data:

The second image displays the Markups List panel from Bluebeam, where all measured items are listed systematically:

• Each item includes:

  • Label (e.g., 6" Slab on Grade, Concrete Footing 20"x10")

  • Color code matching the markup on the drawing

  • Exact measurement (in square feet or linear feet)

  • Page reference (S1.1 – FOUNDATION PLAN)

  • Division category (e.g., Division 03 – Concrete)

This structured approach helps in:

• Generating accurate material quantities

• Supporting cost estimation and planning

• Preparing reports that can be exported to Excel or other estimating software

Final Outcome:

• All structural items have been measured and documented.

• The plan is visually clear and data-rich, ensuring efficient communication with estimators, engineers, and contractors.

• This method enhances accuracy and saves time in the construction documentation process.

Construction Site Planning – GC Markups & Annotations

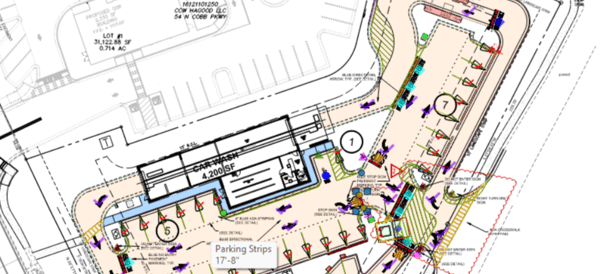

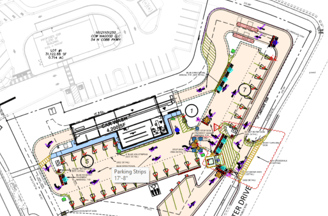

Image 1: Site Plan with Marked Elements

This image displays a detailed site layout where we’ve captured and categorized key civil and architectural elements.
Using layers and color codes, we’ve highlighted multiple site components such as:

• Parking strips

• Concrete curbs (standard and rolled)

• Dumpster gate areas

• Entry/exit zones

• Drive aisles and turning areas

• Signages and utility zones

Each element is layered, color-coded, and labeled for easy reference, improving both communication and clarity during the review process.

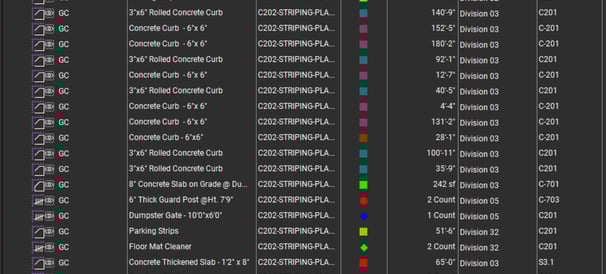

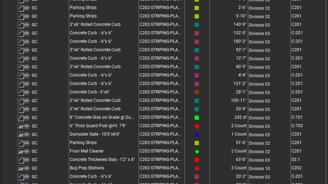

Image 2: Layer & Measurement Table View

This screenshot provides a glimpse of the data backend in Bluebeam Revu, where all take-off measurements are logged with:

• Layer Name: For grouping by trade or scope (e.g., GC – General Construction)

• Label: Clear item identification (e.g., “6"x6" Concrete Curb”)

• Page Reference: To trace items directly on the sheet

• Color Coding: Each item assigned a unique color for visibility

• Measurement Type: Lengths, areas, and counts as needed

• Divisions: Organized per CSI Divisions (e.g., Division 03 – Concrete, Division 32 – Exterior Improvements)
